Guide to conformal coating in EMS manufacturing
In the dynamic and highly specialized sector of Electronics Manufacturing Services (EMS), safeguarding sensitive components and assemblies from environmental and operational degradation is a critical concern. Among the key protective methods employed in this context is conformal coating, a thin, polymer-based barrier applied to electronic circuitry. This coating enhances the reliability of printed circuit boards by protecting against moisture, corrosion, dust, and chemical exposure, without obstructing electrical connectivity or rework capabilities.
As global demand for compact, high-performance, and durable electronic products continues to increase, particularly in automotive, aerospace, medical, and industrial applications, the strategic implementation of conformal coating within PCB production has become essential. With a focus on improving longevity and resistance to physical and chemical stressors, this protective layer represents a convergence of materials science, application engineering, and process control.
This article serves as a comprehensive guide to conformal coating tailored to the EMS industry. It explores the science, techniques, and practical considerations behind selecting, applying, and evaluating these coatings. Emphasis is placed on understanding the types of conformal coating, curing methods, material properties, and defect mitigation to achieve optimal production outcomes. In doing so, it provides engineers, quality specialists, and process developers with an authoritative foundation for managing conformal coating application processes in high-reliability electronic systems.
The decision to apply conformal coating is typically driven by environmental requirements, electrical isolation needs, and long-term reliability goals. In EMS manufacturing, conformal coating is applied selectively or across entire PCB assemblies, depending on the design, operating conditions, and industry standards. Key considerations in determining the coating type include thermal stress, chemical exposure, humidity, and mechanical vibration.
Proper coating application serves not only as a protective measure but also as a quality benchmark, reflecting the precision of the overall manufacturing process. The coating must adhere uniformly while maintaining electrical clearance and accessibility for testing and potential rework. The balance between protection and maintainability is central to the selection and design of any conformal coating system in circuit board production.
The choice of conformal coating material significantly influences performance outcomes, reworkability, and cost-effectiveness. The most widely used materials include acrylic conformal coatings, silicone, urethane conformal coatings, and epoxy conformal coatings. Each class of coating resin exhibits distinct properties in terms of dielectric strength, thermal cycling tolerance, chemical resistance, and ease of removal.
Acrylic coatings are known for their clarity, fast drying times, and excellent humidity resistance, making them well-suited for general-purpose protection. In contrast, silicone coatings are commonly used in high-temperature or chemically aggressive environments due to their flexibility and robust thermal stability. Urethane conformal coatings offer superior abrasion and solvent resistance, though they may pose challenges in rework procedures. Understanding these coating chemistries is fundamental for aligning conformal coating strategies with application-specific demands.
Achieving an optimal coating thickness is essential for ensuring protective efficacy without compromising circuit functionality. An approximate dry coating thickness typically ranges from 25 to 75 microns, depending on the type of coating and application method. Excessive thickness may lead to cracking or delamination, while insufficient coverage can result in localized failure due to moisture ingress or arcing.
Modern inspection systems, including coating thickness using ultrasonic waves, are employed in high-volume EMS production lines to monitor and control deposition parameters. Accurate measuring coating thickness is particularly critical when integrating automated application systems such as spray units or selective dispensing. A consistent coating layer not only enhances performance but also contributes to long-term process stability.
Overview of coating type
classifications
The classification of conformal coating types is primarily based on
the base polymer used, each delivering distinct performance
characteristics tailored to different operational environments. In
EMS manufacturing, four major categories dominate: acrylic
conformal coatings, silicone conformal coatings, urethane conformal
coatings, and epoxy conformal coatings. These coatings differ not
only in their chemical structure but also in their interaction with
substrates, cure profiles, environmental resistance, and
removability.
Acrylic-based coatings are typically single-component formulations known for ease of application and rework. Silicone materials are valued for their broad thermal stability and flexibility, making them particularly well-suited to circuit board assemblies exposed to thermal cycling or mechanical stress. Urethane systems offer strong resistance to abrasion and solvents, while epoxies exhibit high hardness and chemical durability but are generally more difficult to remove or repair.
Pros and cons of each
Each type of coating presents a unique balance of benefits and
trade-offs. Acrylic coatings cure rapidly at room temperature,
facilitating high-throughput processing, but they may offer less
chemical resistance compared to other options. Silicone coatings,
particularly when applied in thin, uniform films, provide
exceptional thermal endurance and are effective in extreme
environments; however, they may exhibit poor adhesion to certain
PCB surfaces unless properly prepared or primed.
Urethane conformal coatings are notable for their robust mechanical and chemical resistance, often used where solvent exposure is a concern. Yet, their reworkability can be limited, and specialized equipment may be required to remove a conformal coating of this type. Epoxy conformal coatings, while offering high hardness and resistance to aggressive environments, are typically rigid and can suffer from cracking under vibration or temperature fluctuations. Selecting the appropriate conformal coating material depends on the functional requirements of the electronic device, manufacturing constraints, and environmental specifications.
Features of acrylic
conformal
Acrylic conformal coatings are widely adopted in EMS due to their
simplicity, transparency, and rapid curing profiles. These coatings
are generally applied via spray techniques or selective coating
systems, making them compatible with both manual and automated
production lines. As conformal coatings are 1-part systems in many
acrylic-based applications, their processing requires minimal
mixing or preparation, which contributes to consistency and process
repeatability.
A key feature of acrylic conformal materials is their excellent electrical insulation and moisture resistance. They also allow for UV cure enhancements in certain formulations, enabling faster cure cycles and immediate downstream processing. Their relatively low viscosity ensures good coverage, and they typically maintain clarity, which aids in visual inspection of underlying components on the PCB.
Best use cases in electronic
assemblies
Acrylic-based coatings are particularly suited for printed circuit
assemblies used in controlled or moderately aggressive
environments, where reworkability and visual inspection are
priorities. These coatings are commonly found in consumer
electronics, telecommunications, and automotive control modules,
where production speed and consistent coating thickness are
essential.
Due to their solubility in standard removal agents, acrylic coatings are also favorable in prototyping, diagnostics, and repair contexts. Although they may lack the extreme chemical or thermal resistance of silicone or urethane systems, their performance-to-cost ratio makes them a preferred choice in many EMS applications, especially where balanced protection, easy application, and short cure times are required.
In EMS manufacturing environments, the choice of coating application technique significantly affects production efficiency, quality assurance, and long-term reliability of the conformal coating layer. The four primary methods used to apply conformal coating are dipping, brushing, spray coating, and selective coating.
Dipping involves submerging the entire printed circuit or assembly into the conformal coating material, ensuring comprehensive coverage but often resulting in higher material usage and the need for extensive masking. Brushing, although labor-intensive, is suitable for low-volume or prototype runs where targeted application is required. The spray method, particularly when deployed with a spray gun, offers a balance of control and efficiency, making it suitable for mid- to high-volume production, although it may introduce variability in coating thickness if not well-calibrated.

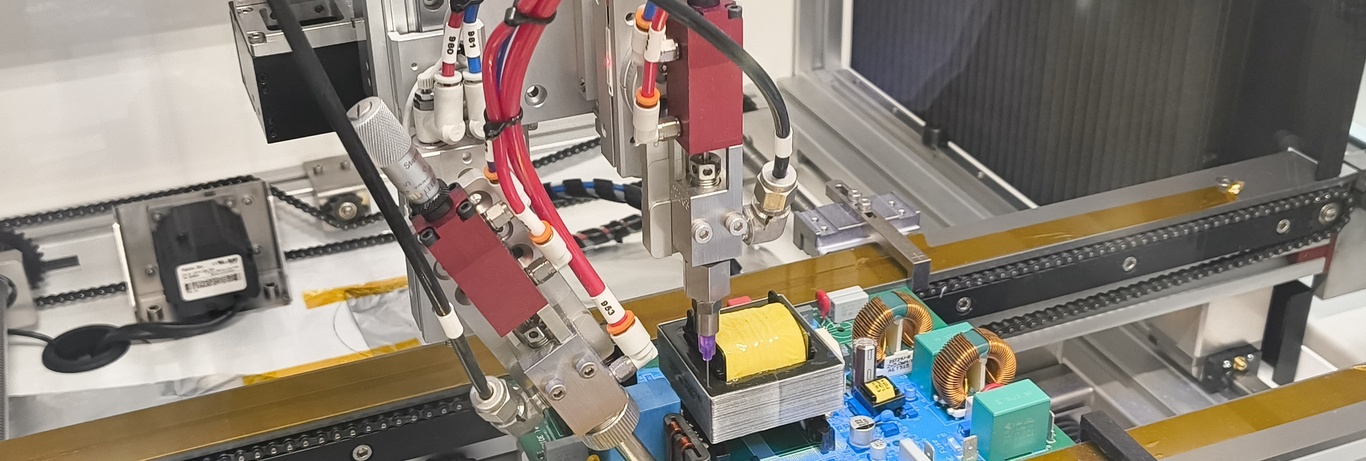

Selective coating, widely adopted in automated EMS lines, utilizes programmable nozzles or valves to dispense material precisely where needed, minimizing waste and eliminating the need to mask entire assemblies. This approach is compatible with high-speed SMT production and integrates seamlessly with inspection and UV cure systems, enabling in-line processing with minimal downtime. The evolution of selective coating application systems reflects the industry's push toward leaner, more controlled production strategies.
Implementing best practices when applying the conformal coating is essential for ensuring durability, electrical integrity, and resistance to environmental stress. A critical first step is the preparation of the surface: circuit board assemblies must be clean, dry, and free of residues such as flux or oils. Contaminants trapped beneath the coating layer can lead to poor adhesion, localized corrosion, or electrical leakage.
Masking is another key element, particularly when connectors, test points, or heat sinks must remain exposed. Improper masking can result in unwanted coverage or insufficient insulation, compromising the overall functionality of the device. The masking process itself must be precise and compatible with the conformal coating formulation to prevent chemical interactions or mechanical detachment during cure.
Environmental control during application plays a pivotal role in avoiding common conformal coating defects such as bubbles, orange peel texture, or incomplete coverage. Factors including ambient temperature, humidity, air pressure, and ventilation influence the material’s flow characteristics and its interaction with the coating surface. Proper setup and regular calibration of equipment help maintain consistency, particularly in UV curable conformal coatings, which are sensitive to light intensity and exposure timing.
By adhering to standardized application practices and conducting in-process inspections, EMS providers can mitigate risks and ensure that conformal coating provides the necessary protection for mission-critical electronic assemblies.
Selecting the appropriate conformal coating product requires a comprehensive understanding of electrical, chemical, mechanical, and environmental requirements. Critical considerations include operating temperature range, dielectric strength, thermal cycling tolerance, moisture and chemical exposure, and repairability. Compatibility with rework processes is especially important in EMS, where efficient maintenance can significantly impact production costs and throughput.
Additionally, the selection process must account for the properties of the coating, such as viscosity, flashpoint, and pot life, which influence application methods and safety protocols. The choice of coating resin, whether it be silicone, acrylic, urethane, or epoxy, must also reflect the performance specifications of the target assembly and the acceptable trade-offs between protection and processing complexity.
Industry-specific standards for conformal coating products, such as those defined by IPC or MIL specifications, help guide EMS manufacturers in making consistent, performance-driven decisions. Adherence to these standards ensures that the selected product aligns with both customer expectations and regulatory requirements. Although conformal coating by using advanced chemistries can improve outcomes, success ultimately hinges on aligning the product’s attributes with real-world use cases and process capabilities.
The cure process is fundamental in determining the final properties and performance of a conformal coating. Depending on the conformal coating material used, the curing mechanism may rely on thermal energy, ambient moisture, or ultraviolet (UV) light. Each method has distinct implications for production throughput, equipment needs, and post-process characteristics.
Thermal curing is common in epoxy and some urethane conformal formulations. It requires elevated temperatures sustained over defined durations to allow the coating resin to polymerize and form the desired protective layer. While effective, it often extends cure time and consumes significant energy, which may limit its practicality in high-speed EMS lines.
Moisture curing, used primarily in certain silicone coatings, depends on ambient humidity to trigger chemical cross-linking. Though relatively simple to implement, this method introduces variability in environments with fluctuating humidity levels. UV cure, in contrast, offers the fastest and most controllable solution, particularly when integrated into automated SMT production environments. Curing conformal coatings with UV systems allows manufacturers to achieve immediate solidification of the coating layer, minimizing handling delays and enabling rapid downstream processing.
Effective process control during curing is essential to ensure consistent coating thickness, adhesion, and dielectric performance. Parameters such as intensity, wavelength, exposure duration, and thermal ramp profiles must be rigorously monitored, especially in systems where multiple coating chemistries coexist. Real-time monitoring tools embedded in advanced curing ovens or UV tunnels allow for tight process regulation and fast detection of deviations in line conditions.
The adoption of UV cure technology in modern EMS operations reflects a broader industry shift toward accelerated, controlled, and environmentally efficient manufacturing methods. Unlike traditional thermal or moisture-based systems, UV curable conformal coatings can reach a fully cured coating state within seconds under appropriate lighting conditions. This rapid transition from liquid to solid not only enhances throughput but also minimizes contamination risks associated with extended drying times.
UV cure coatings are typically based on acrylate or modified acrylic conformal systems, offering clarity, adhesion, and rapid processing. They are compatible with selective spray and jetting systems and can be precisely controlled via programmable logic to achieve uniform coverage with minimal overspray. The use of UV in conformal coating is especially advantageous in high-mix, high-volume EMS lines where cycle time and repeatability are critical performance indicators.
Integration of UV systems into production lines requires synchronization with application and inspection equipment. Conveyorized curing tunnels equipped with adjustable lamp arrays and real-time energy sensors provide the necessary flexibility and consistency. Moreover, UV systems contribute to safer workplaces and lower environmental impact by eliminating the need for solvents and reducing thermal output.
As the electronics industry moves toward miniaturization and increasing product complexity, UV cure offers a scalable, precise, and sustainable solution for conformal coating processes. Its compatibility with high-speed automation and ability to deliver consistent, high-quality finishes positions it as a cornerstone of next-generation EMS operations.
In the context of Electronics Manufacturing Services (EMS), precision in conformal coating thickness is critical for maintaining the protective function of the coating without hindering electrical performance or serviceability. The thickness of a coating directly influences its ability to form the polymer coating barrier that shields sensitive areas of the circuit board from moisture, ionic contaminants, and mechanical abrasion.
Measurement of coating thickness is typically performed using non-contact techniques such as laser triangulation, eddy current sensors, or ultrasonic methods. Among these, coating thickness using ultrasonic waves has become a common technique of coating removal assessment and verification, especially in high-reliability sectors such as aerospace and medical electronics. These methods allow for real-time monitoring during production and post-process inspection without damaging the assembly.
Uniformity in the coating layer is also essential. Variations may arise from inconsistencies in material viscosity, improper curing, or environmental fluctuations. As part of the inspection process, automated vision systems and fluorescent UV inspection lights are used to detect voids, bubbles, or missed areas. Ensuring consistent coverage without overcoating helps maintain ideal electrical insulation and mechanical stability while enabling efficient rework when necessary.
Even when the application process is well-controlled, defects in conformal coating layers can still occur due to material interactions, environmental contamination, or equipment malfunction. Some of the common conformal coating defects include bubbles, dewetting, fisheyes, bridging, cracking, and delamination. These defects compromise the coating’s protective qualities and can lead to premature device failure in the field.
Defect prevention begins with appropriate material handling and preparation. Ensuring clean substrate surfaces, proper mixing of multi-part systems (if applicable), and accurate control of application and cure parameters are all essential. Additionally, maintaining a stable environment during coating application with controlled humidity and temperature can help prevent moisture entrapment or incomplete polymerization.
When defects are detected, various rework and coating removal strategies are employed. Thermal, chemical, and mechanical removal methods must be chosen based on the type of coating and the assembly’s sensitivity. For example, flexible conformal coatings such as silicone or certain acrylic blends may be more amenable to partial or localized removal, while rigid epoxies often require full mechanical rework or board replacement. The common technique of coating removal is solvent-based stripping, especially for acrylic conformal coatings, where localized repair is required without damaging underlying circuitry.
Ultimately, the purpose of conformal coating is rooted in its role as a protective measure for electronic assemblies. When correctly applied, conformal coating can be applied to shield assemblies from mechanical shock, humidity, salt fog, fungus, and corrosive vapors, which would otherwise degrade performance or lead to catastrophic failure. This thin but highly effective layer is particularly vital in sectors such as aerospace, automotive, and defense, where environmental conditions are both unpredictable and severe.
From the perspective of quality assurance, conformal coatings must not only meet mechanical and electrical criteria but also comply with customer specifications and industry standards. IPC-CC-830 and MIL-I-46058C, for example, define rigorous testing protocols for dielectric strength, insulation resistance, flexibility, thermal cycling, and chemical resistance. Only coatings that meet these benchmarks can be considered reliable for use in high-stakes electronic applications.
In this context, conformal coatings are used not only as protective barriers but also as enablers of innovation, allowing more compact, densely populated, and functionally complex devices to operate safely in environments that would otherwise be incompatible with exposed electronics.
As electronic assemblies continue to evolve toward higher functionality, miniaturization, and deployment in increasingly harsh environments, conformal coating technologies are advancing in parallel to meet new performance and regulatory demands. Among the most notable trends is the development of advanced coating chemistries with enhanced thermal conductivity, lower environmental impact, and improved flexibility.
Next-generation conformal coating types include hybrid materials that combine the beneficial attributes of acrylics, silicones, and urethanes to form multifunctional layers. These materials aim to enhance moisture resistance while maintaining low modulus, allowing for better mechanical compliance. Simultaneously, research is underway into type of coating systems based on nano-additive enhancements that increase dielectric strength without increasing coating thickness a crucial factor for compact PCB designs.
Environmental sustainability is also shaping material innovation. Many manufacturers are shifting toward low-VOC and solvent-free formulations that reduce emissions while maintaining or exceeding performance benchmarks. Additionally, flexible conformal coatings with high elongation properties are gaining interest for use in wearable electronics, medical devices, and other dynamic environments where mechanical deformation is common.
These material trends are pushing the boundaries of what conformal coatings are used for, expanding their role from simple protective barriers to smart, multifunctional layers that integrate seamlessly with modern electronic design challenges.
Beyond material science, the future of conformal coating in the EMS sector will be increasingly shaped by automation and artificial intelligence. Advanced robotic dispensing platforms are enabling highly repeatable coating application processes, with precision measured in fractions of a millimeter. These systems reduce material waste, increase production throughput, and minimize human error, especially in high-mix, high-volume production environments.
AI-driven vision systems are becoming essential tools for inspection and quality control. These platforms can detect anomalies in the coating layer, such as gaps, bubbles, or excessive buildup, with real-time feedback loops that adjust dispensing parameters during the process. Integration of machine learning models also allows for predictive maintenance and dynamic adjustment based on substrate geometry or previous inspection trends.
As smart manufacturing continues to expand, conformal coating formulation and application will be increasingly defined by closed-loop systems in which environmental data, process variables, and product performance metrics are continuously analyzed and optimized. The result is a more agile, cost-effective, and quality-driven production model that aligns with Industry 4.0 principles.
In the coming years, we can expect conformal coating technologies to play an even more integral role in enabling the performance, reliability, and environmental resilience of next-generation electronics across virtually every industry where electronics are embedded.
The increasing complexity and functional density of modern electronic systems have made environmental protection an indispensable requirement in EMS manufacturing. Across diverse sectors from aerospace and automotive to telecommunications and medical devices reliable performance of PCB assemblies hinges on their ability to withstand mechanical, thermal, and chemical stressors. In this context, conformal coating is a protective solution that not only preserves functionality but also extends the operational lifespan of electronic products under real-world conditions.
Throughout this article, we have examined the multifaceted role of conformal coating in electronic manufacturing, covering its fundamental materials, application techniques, curing technologies, and quality control mechanisms. From the selection of coating type and application method to the control of coating thickness and cure dynamics, each stage of the process plays a critical role in the overall effectiveness of the protective system.
As materials science and automation continue to evolve, conformal coatings are poised to become even more intelligent, adaptive, and efficient. The emergence of smart formulations, AI-driven application systems, and sustainable chemistries illustrates a future in which protective coatings are not merely passive barriers but active contributors to product innovation and performance assurance.
Ultimately, the integration of precise, well-engineered conformal coating processes within EMS lines is not simply a manufacturing step it is a strategic investment in quality, reliability, and customer satisfaction. By understanding and optimizing each element of the conformal coating lifecycle, industry professionals can ensure that their electronic assemblies meet the highest standards of protection, performance, and production efficiency in a world of increasingly demanding applications.
